Rotary Screw
Open Frame Compressors

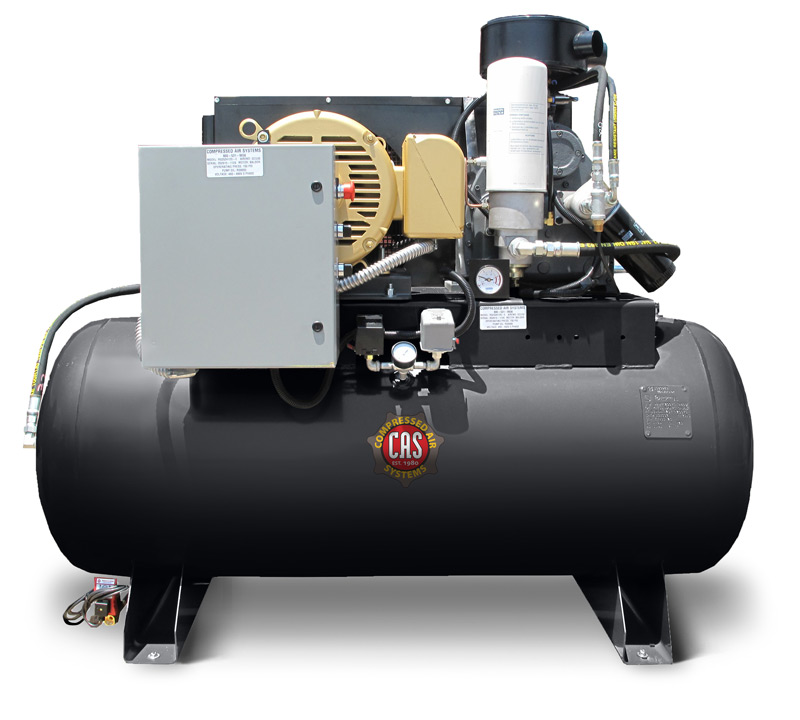

25 HP G-Series Open Rotary Screw
Compressed Air Systems G-Series models are basic, simple to operate rotary screw compressors priced to fit any budget. Designed to provide a high level of reliability, efficiency and productivity for applications that need the benefits of a rotary screw compressor in an economy package. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality components, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.
- Features
- 102 cfm @ 150 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Alpha profile rotors
- Air/oil cooler
- ASME/CRN powder coated receiver
- Automatic tank drain
- Easy to remove bolt on oil cooler
- Extended oil drain for easy service
- Factory filled with premium synthetic fluid
- Heavy duty air filter
- Simplified operating controls (No complicated micro-processor)
- Smart contractor
- Spin on oil filter
- Spin on separator
- Single control solenoid operation
- Standard operating pressure 175 psi
- UL control components
- Tank discharge ball valve
- TEFC drive motor (3 phase only)
- Vibration isolation pads
- Free freight in CAS freight pre-paid area & southern Canada
| Model | Phase | Voltage | Tank | Length | Width | Height | Amp Draw 230 Volt | Amp Draw 480 Volt |
|---|---|---|---|---|---|---|---|---|
| RS253H120-GCU | 3 | 208-230/460-480 | 120 Gallon Horizontal | 72 | 36 | 54 | 63 | 32 |
