Rotary Screw
Enclosed Duplex Compressors

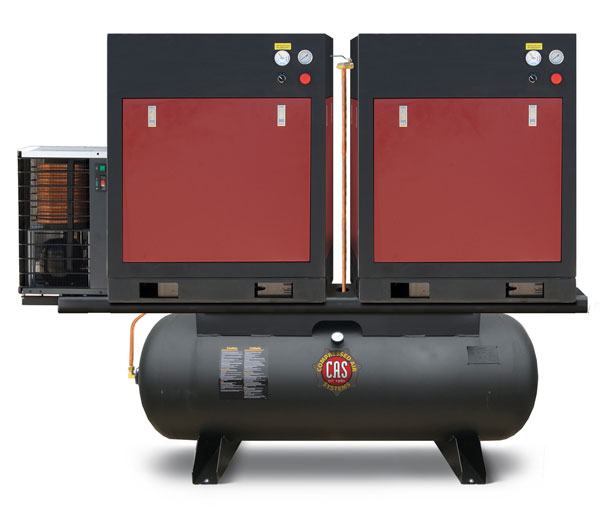

5 HP Duplex Enclosed Rotary Screw
Compressed Air Systems duplex enclosed compressors are the ultimate in power and electrical efficiency rapped in a sound attenuating enclosure. CAS enclosed compressors combine the lowest dBA levels in the industry with highest levels of reliability, efficiency and productivity available. Designed for redundancy in all situations and built to deliver twice the power in the same amount of space as a typical compressors. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality components, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.
- Features
- 70 dDB
- 32 cfm @ 150 psi
- 38 cfm @ 125 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Airend manufactured with German rotary screw components
- Air/oil cooler
- ASME powder coated air receiver
- Automatic tank drain
- Baldor electric motors
- Easy to read and access gauges
- Extended oil drain with ball valve for easy service
- Factory filled with premium synthetic fluid
- Grasshopper style tank
- Heavy-duty air filter
- IEC contactors
- Omega profile rotors
- Single control solenoid operation
- SMART contact controls
- Sound dampening enclosure
- Spin on oil filter
- Spin on separator
- Stainless steel discharge lines
- Timed shutdown
- UL control components
- Vibration isolation pads
| Model | Phase | Voltage | Tank | Length | Width | Height | Amp Draw 230 Volt | Amp Draw 480 Volt |
|---|---|---|---|---|---|---|---|---|
| DRS51ENC-CRD | 1 | 208-230 | 120 Gallon Horizontal | 98 | 36 | 78 | 48 | N/A |
| DRS53ENC-CRD | 3 | 208-230/460-480 | 120 Gallon Horizontal | 98 | 36 | 78 | 32 | 16 |
