Reciprocating CompressorsIndustrial-Duty Compressors

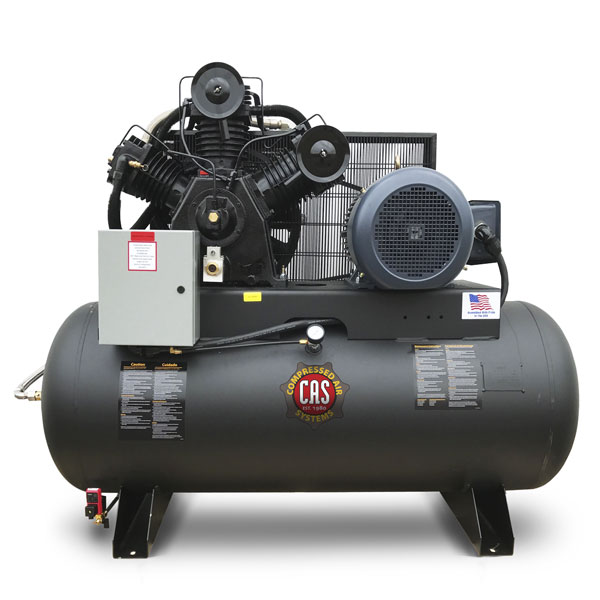

15 HP | 51 cfm Industrial-Duty Compressors
The CAS Industrial Series reciprocating compressors are designed for heavy commercial and industrial applications. Low rpm pumps provide reliable air for your applications and are manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today.
CAS Elite Series compressors feature a unique option package that makes our compressors simpler to maintain while delivering higher quality air.
- Features
- 51 cfm @ 175 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Access to compressor valves without compressor head removal
- All UL electrical controls
- ASME tested powder coated steel tank
- Auto start/stop
- Bearings on both ends of the crank shaft
- Centrifugal unloader
- Disk and spring valves
- Fully enclosed belt guard
- Heavy-duty air filter
- Heavy-duty two stage solid cast iron pump
- Industrial grade electric motor
- Magnetic starter mounted and wired
- Needle bearings, and inserts on rods
- Stainless steel flex air lines
- Swedish steel valves
- TEFC drive motor (3 phase only)
- Torrington needle bearings
- 2-groove B width motor pulley
- 2-piece tank top plate design
- Elite Model Features
- All basic features
- Automatic tank drain
- Belt guard after cooler
- Low oil monitor
- Tank discharge ball valve
- Vibration pads
- Freight pre-paid in the 48 states & southern Canada
- Downloads
- Product Sheet
- Owners Manual
- 15-30 HP Reciprocating Catalog
- Installation Guide
- Start-Up Checklist
- Warranty
- Warranty Claim Form
| Model | Phase | Voltage | Tank | Length | Width | Height | Amp Draw 230 Volt | Amp Draw 480 Volt |
|---|---|---|---|---|---|---|---|---|
| B253H129 | 1 | 208-230 | 120 Gallon Horizontal | 70 | 38 | 60 | 63 | 32 |
| B253H229 | 3 | 208-230-460 | 240 Gallon Horizontal | 85 | 46 | 72 | 63 | 32 |
| Add E after model number to make Elite Model | ||||||||
