Rotary Screw Compressors
Cube Air System

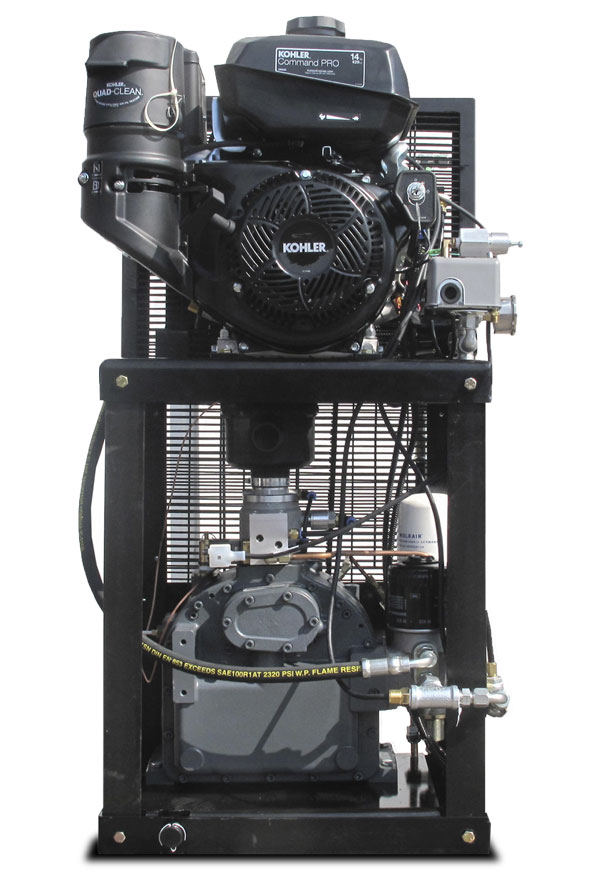

13-14 HP Cube Air Engine Driven Rotary Screw
The CAS Cube Air System is the simplest to purchase, own, and operate compressor in the world. The Cube Air System allows you to purchase a functioning compressor without having to purchase an air receiver. If the site already has a certified functional air receiver you simply install the Cube Air System next to the existing tank and connect the air discharge line. If the there is no existing tank or the existing tank is no longer certified or functional you can add a stand-alone tank to the system.
- Features
- 34 cfm @ 150 psi
- Centrifugal unloader
- Discharge cooling manifold
- Easy open inline check valve
- Easy service belt guard
- Easy to read oil sight glass
- Easy to mount installation feet
- Electric start drive engine
- Extended oil drain tube
- Inner stage cooler
- Minimal floor space foot print
- Multiplexing capability
- Rigid steel frame construction
- Self tensioning motor base
- 2 belt drive system
- Package Options
- Coalescing filtration
- Desiccant air dryer
- Electronic automatic tank drain kit (shipped loose for installation on site) Kit includes: drain, ¼ pipe street 90 elbow, ¼ pipe 6 inch nipple
- Enrollment in factory extended service program
- Enrollment in factory extended warranty plan
- Particulate filtration
- Quick Install Kit Includes: 8ft electrical cord with plug, 6ft compressor to tank air line JIC fittings, 6ft tank to facility air line JIC fittings
- Reciprocating Pump Enclosure for noise reduction
- Refrigerated air dryer
- 30, 60, 80, 120, gallon storage tank (200 psi MWP, ASME, CRN)
- CRD Compressor Features
- All basic features
- Air receiver
- Receiver gauge
- Receiver manual tank drain
- Receiver safety valve
- Refrigerated air dryer
- Vibration mounting pads
| Model | HP | Engine Start | Drive engine | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|
| Q-RS130-GCU | 13 | Electric | Honda | 20 | 19.5 | 44.5 | 250 |
| Q-RS140-GCU | 14 | Electric | Kohler | 20 | 19.5 | 44.5 | 250 |
| Add E after model number to make Elite Model All dimensions are in inches, weight is in pounds. |
|||||||
