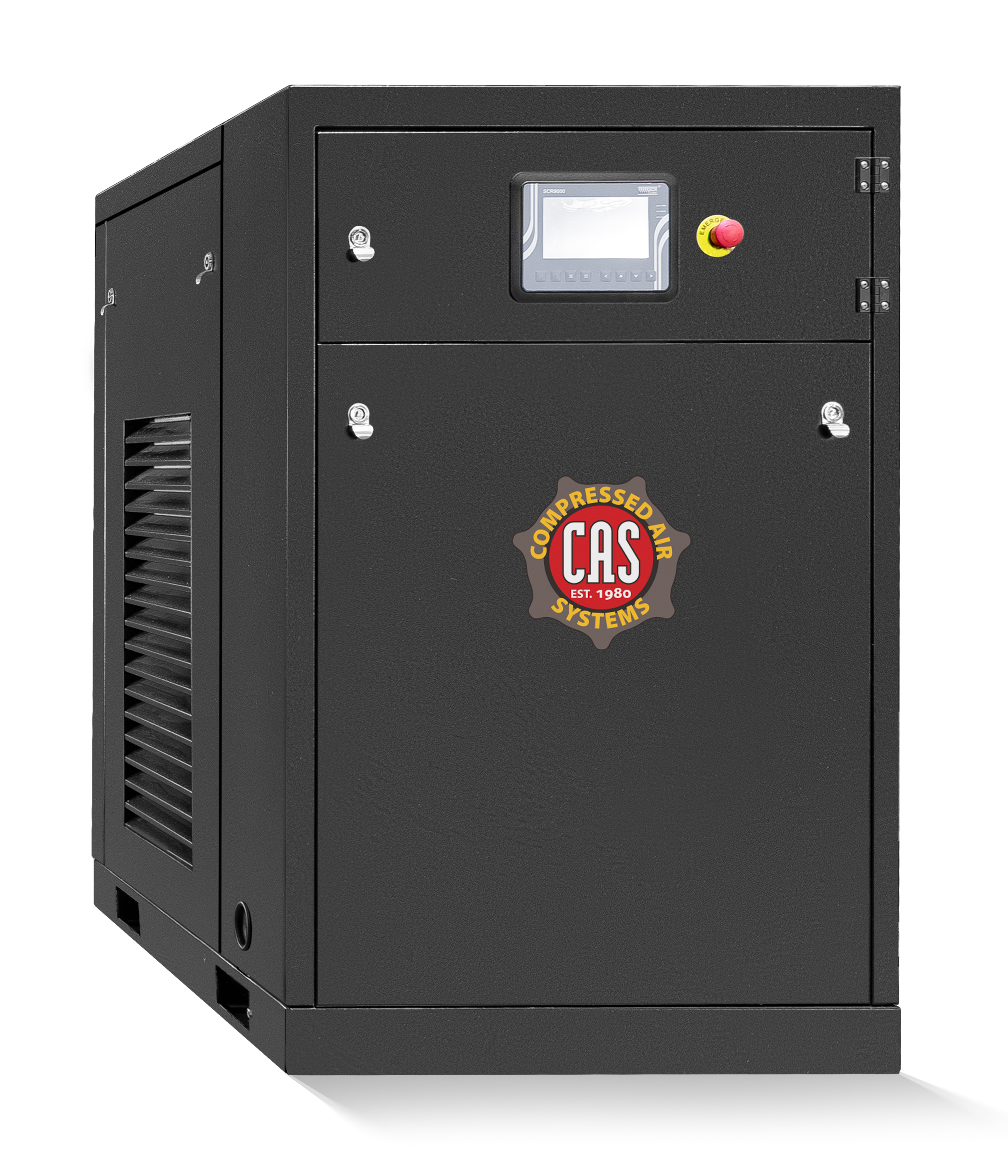

Permanent Magnet Rotary Screw Compressors

20 HP | 71 CFM

71 CFM @ 150 PSI

81 CFM @ 120 PSI

No Startup Kit Required

Lifetime Parts Warranty Available

Description

A liquid-cooled permanent magnet motor with an integrated flux vector inverter delivers exceptional efficiency and precise control, while smart controls with a 7-inch full-color touchscreen provide real-time operation, maintenance, and alarm data. Integrate up to eight compressors into one complete system.

No items found.
Features

  • Liquid cooled Permanent Magnet drive motor
  • 50% oversized air/oil cooler to allow for higher ambient conditions
  • Direct drive for zero power loss — no bearings, belts, or couplers
  • IE4 Super Premium Efficiency standard for energy savings
  • IP65 protection against dust and moisture
  • Variable speed drive
  • Integrated flux vector inverter
  • Wide voltage design meets C3 and EMC standards
  • UL Certified electrical controls
  • VSD controlled cooling fan
  • Built in DC Reactor
  • 7 inch full color touch screen
  • RS485 connectivity for system integration
  • Closed Loop dynamic controls
  • Quiet thermostatically controlled cooling fan
  • Compressor airend speed 3500 RPM or less
  • Easy controller interface
CRD Features

  • ASME/CRN certified air receiver
  • Automatic tank drain
  • Refrigerated air dryer
  • SMART contact control
  • Vibration isolation pads
  • Freight pre-paid in the 48 states & southern Canada
Models
HP
Voltage
LxWxH (Inches)
Weight (lbs)

RS20ENC-PM

20

208-230/480/3

46×32×43

N/A

1058

Contact Us

Contact us to request a quote or find a distributor.

Knowledge Base

Visit the Knowledge Base to find Parts Diagrams, Maintenance Guides, and more.

Terms of Sale

Payment Terms

MasterCard or Visa accepted at time of shipment. Term discounts do not apply to credit card payments.

2% 10 net 30 with open account that is current.

Orders do not ship on accounts 45 days past due.
Past due invoices are subject to a 1.5% finance charge.

Shipping Terms

  • All Elite series units are freight prepaid in the designated area (see shipping map for details).
  • 4+ Elite series compressors extra 5% discount (must ship to one location).
  • Duplex Units are prepaid and come standard with control panel.
  • 2+ Industrial series prepaid (must ship to one location).
  • 10+ Elite or Industrial series extra 5% discount (must ship to one location).
  • $7,500 of Commercial Duty Packages required for freight pre-paid.
  • All other units are FOB factory.

Elite Freight Prepaid Shipping Area

  • Anywhere in lower 48 states, and southern Canada (Vancouver, Calgary, Toronto, Saskatoon, Winnipeg)

Returns

  • New, uninstalled merchandise carries a 15% restocking fee.
  • No freight allowed.
  • Merchandise must be returned within 15 working days of receipt.
  • Special Order units may not be returned (compressors that are changed or altered from Basic list or Elite list features).

Equipment Floor Plan Option

Compressed Air Systems is pleased to offer an equipment floor planning program. For a distributor to be eligible they must meet the following conditions:

  1. Distributor must have a current Net 30-day account.
  2. Distributor must have a credit limit in excess of $15,000.00
  3. Distributors are allowed one active floor plan order on the books at a time.
  4. For another floor plan order to be placed, the previous order must be paid in full.
  5. For an order to be eligible for the floor plan option the order must consist of at least seven (7) industrial compressor packages (reciprocating or rotary screw) and have a total order value of at least $15,000.00.

Contact your sales representative to confirm if you qualify.

Floor Plan Option Terms

The order MUST be noted as a floor plan order prior to the order shipping from a Compressed Air Systems facility. A floor plan order will ship on Net 60-day terms. The floor plan terms will begin after the Net 60-day term limit has expired. Starting on the 61st day, and subsequent 30 day periods after that (up to 180 total days), a 2% floor plan fee will be charged to the account per 30-day period on the remaining balance of the floor plan invoice. The remaining balance is calculated on the 1st day of the 30 days’ period, with no exceptions. The remaining balance on that day is the amount that is subject to the floor plan fee. After 180 days, the invoice remaining balance must be paid in full, any balance not paid in full is subject to additional collection and finance charges. At any time during the first 29 days after a floor plan order has been placed, it can be changed back to a standard Net 30-day terms order at the distributor’s request.

View or download all Sales Policies
