Airtite Pipe

Name: Airtite Pipe
Brand: Compressed Air Systems

Airtite Pipe

Pipe & fittings from ½" to 6"

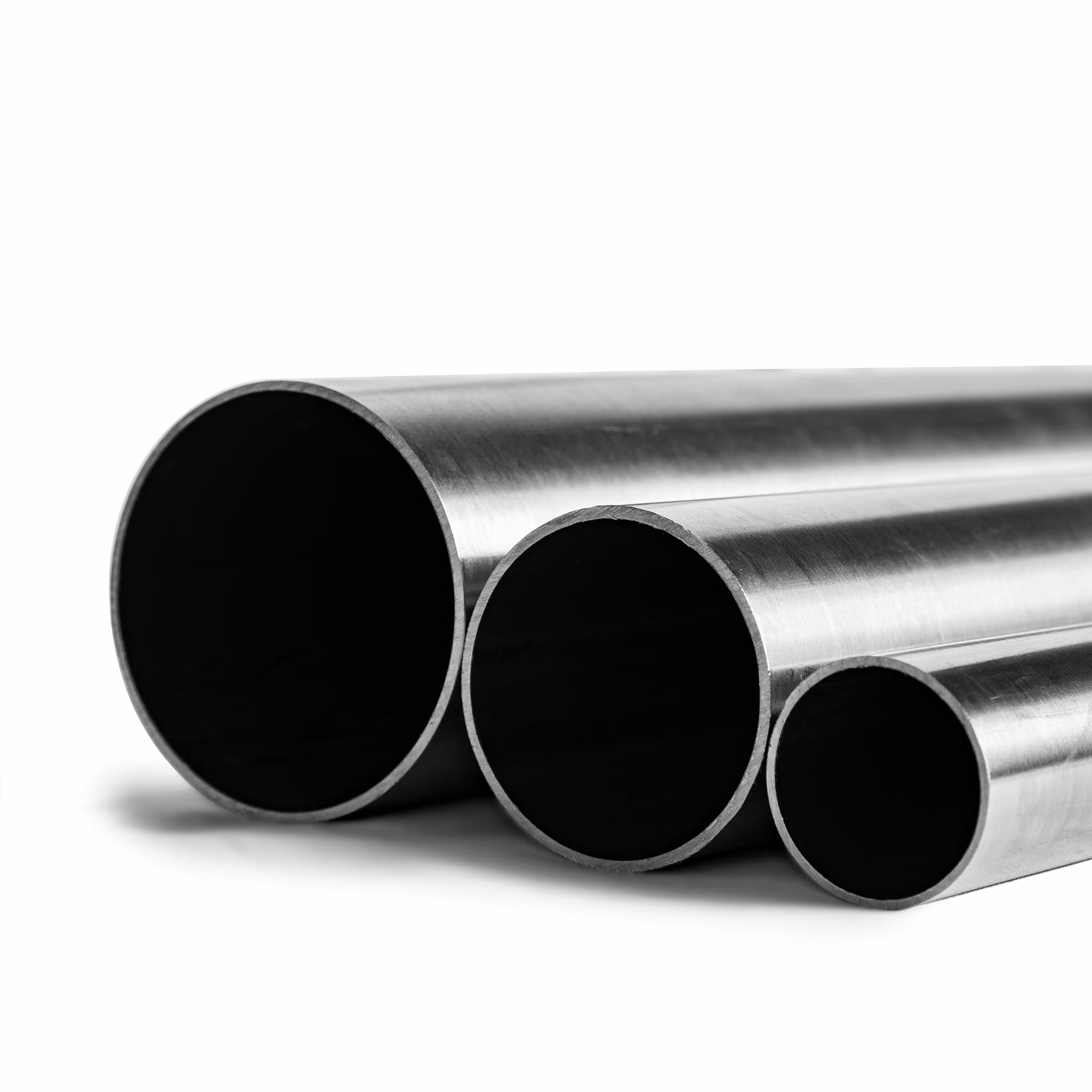

Airtite Pipe is a stainless steel piping system designed for air compressors. Combining unmatched durability, effortless installation with press style fittings, and cost-effective pricing, Airtite Pipe delivers superior performance at a fraction of the cost of copper or aluminum. Experience faster install times, leak-free connections, and a corrosion-resistant system built to handle the toughest environments.

Features

Connections can be made wet or dry for quick repairs on existing systems
Make secure press connections in fifteen seconds or less
Press elimenate the need for soldering
More than 300 different fitting configurations

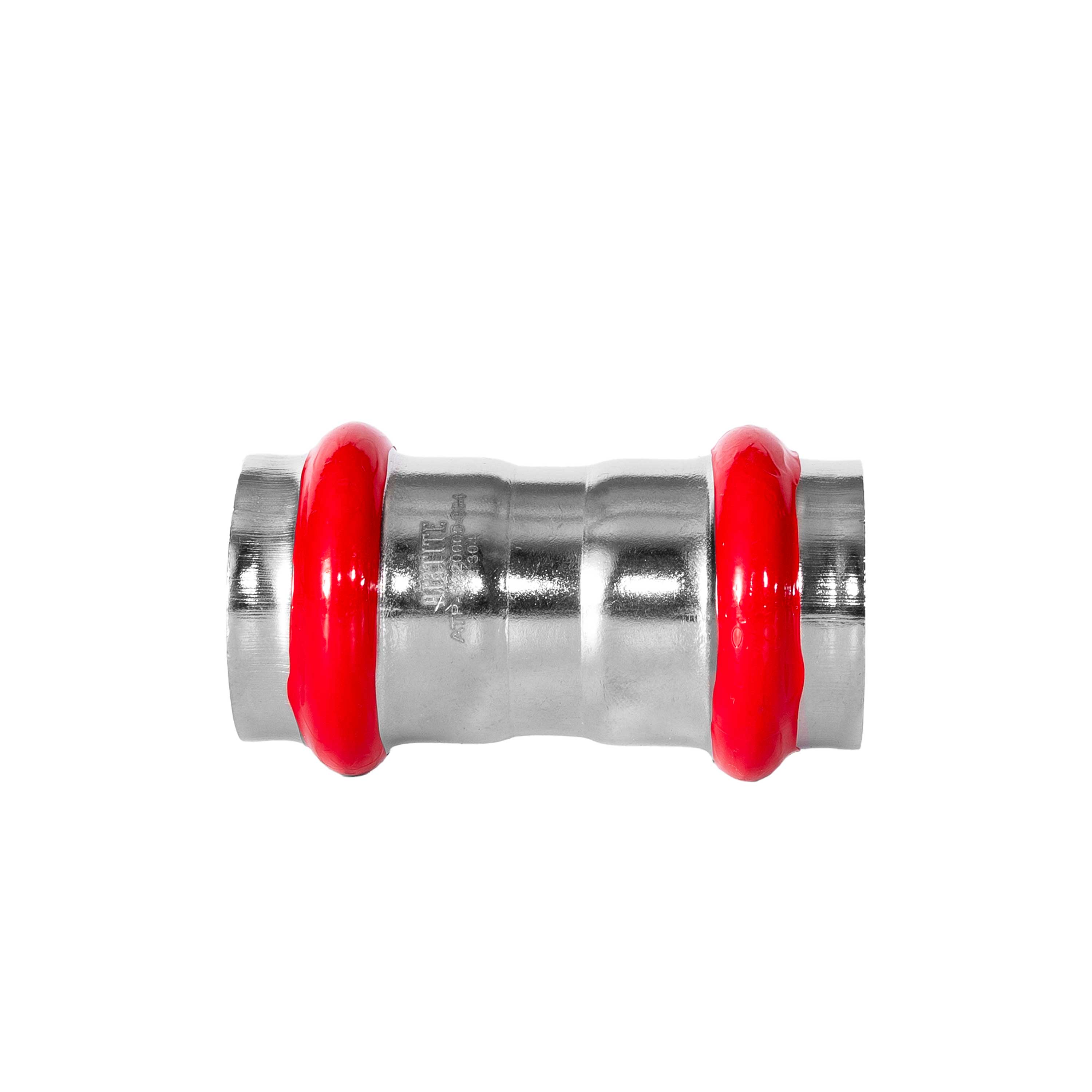

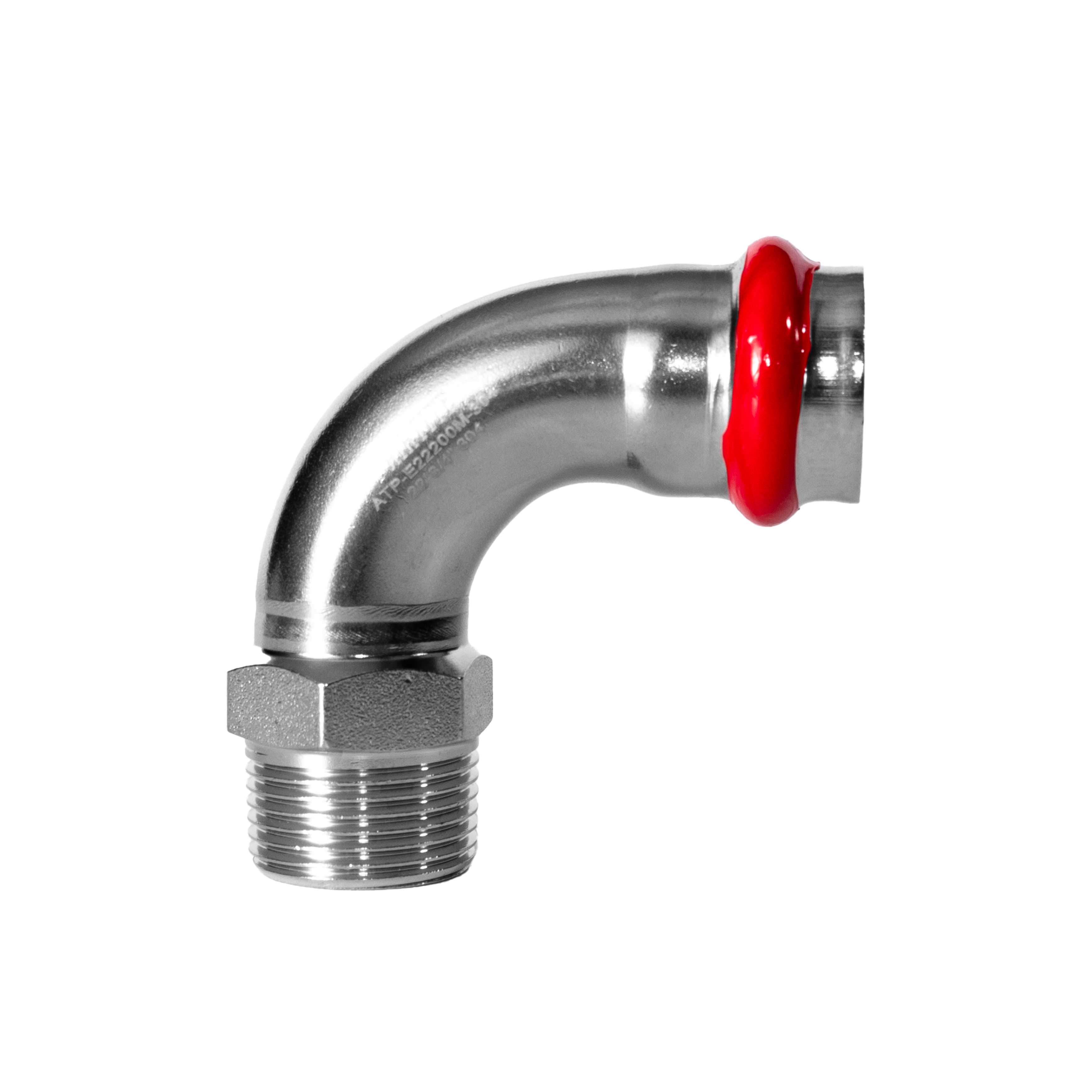

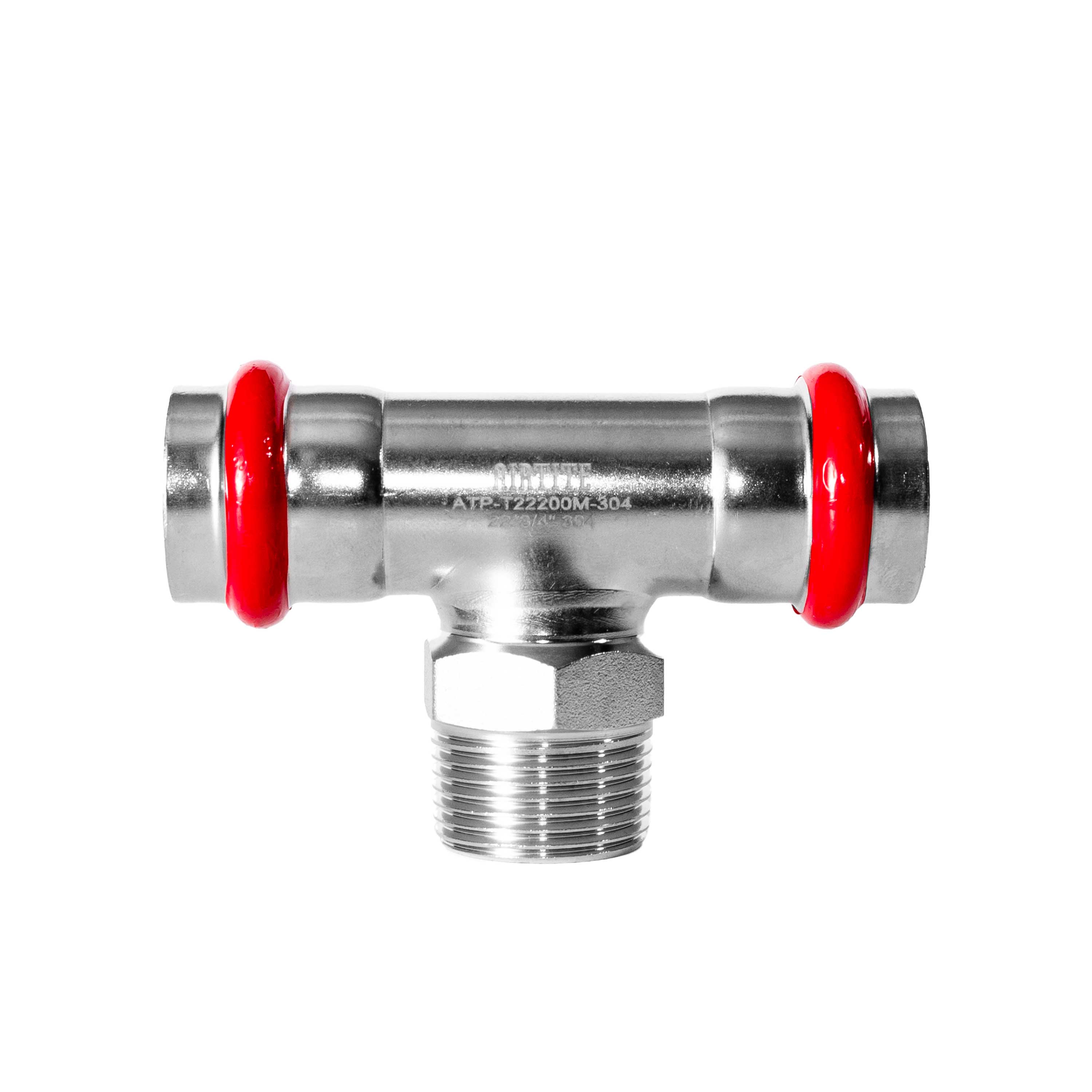

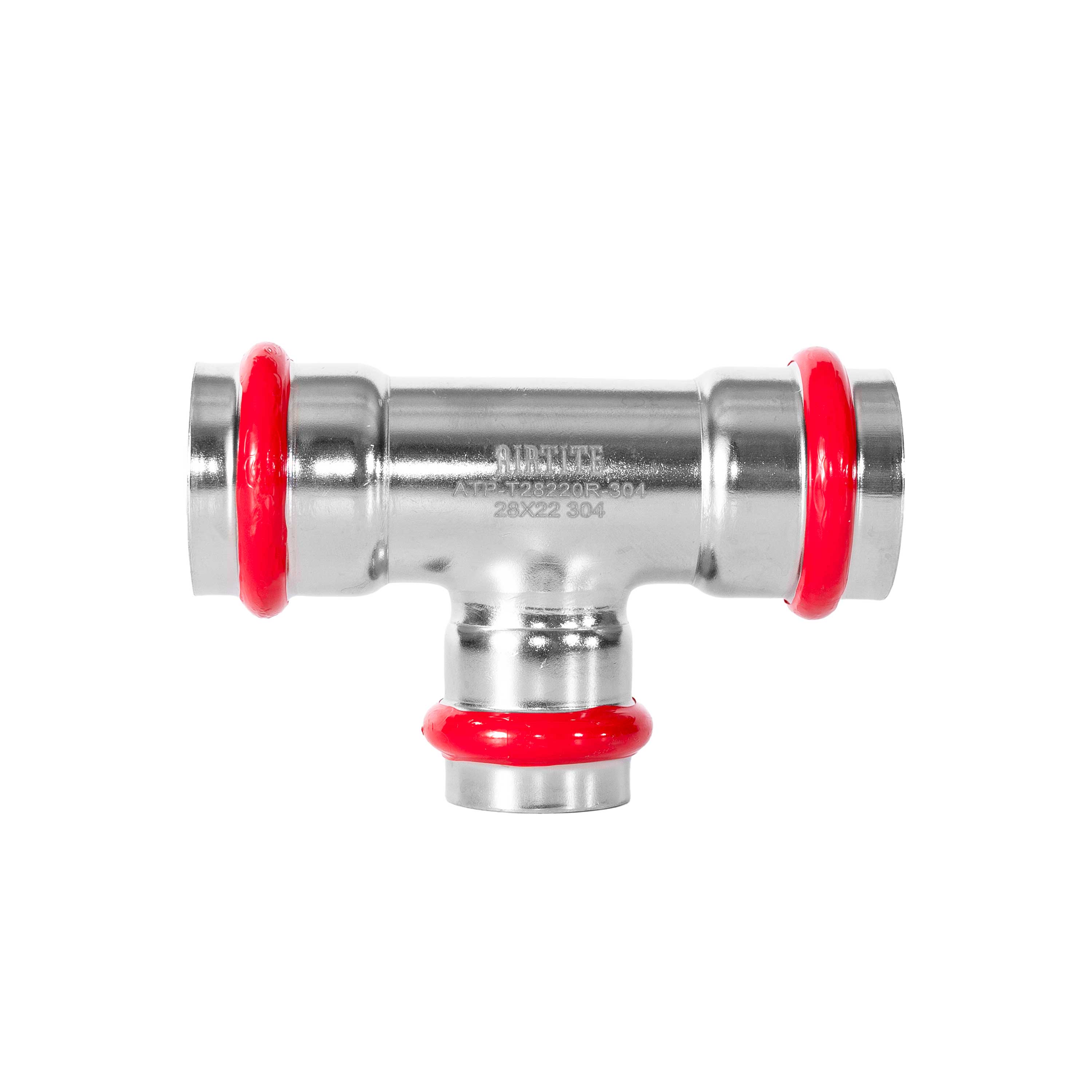

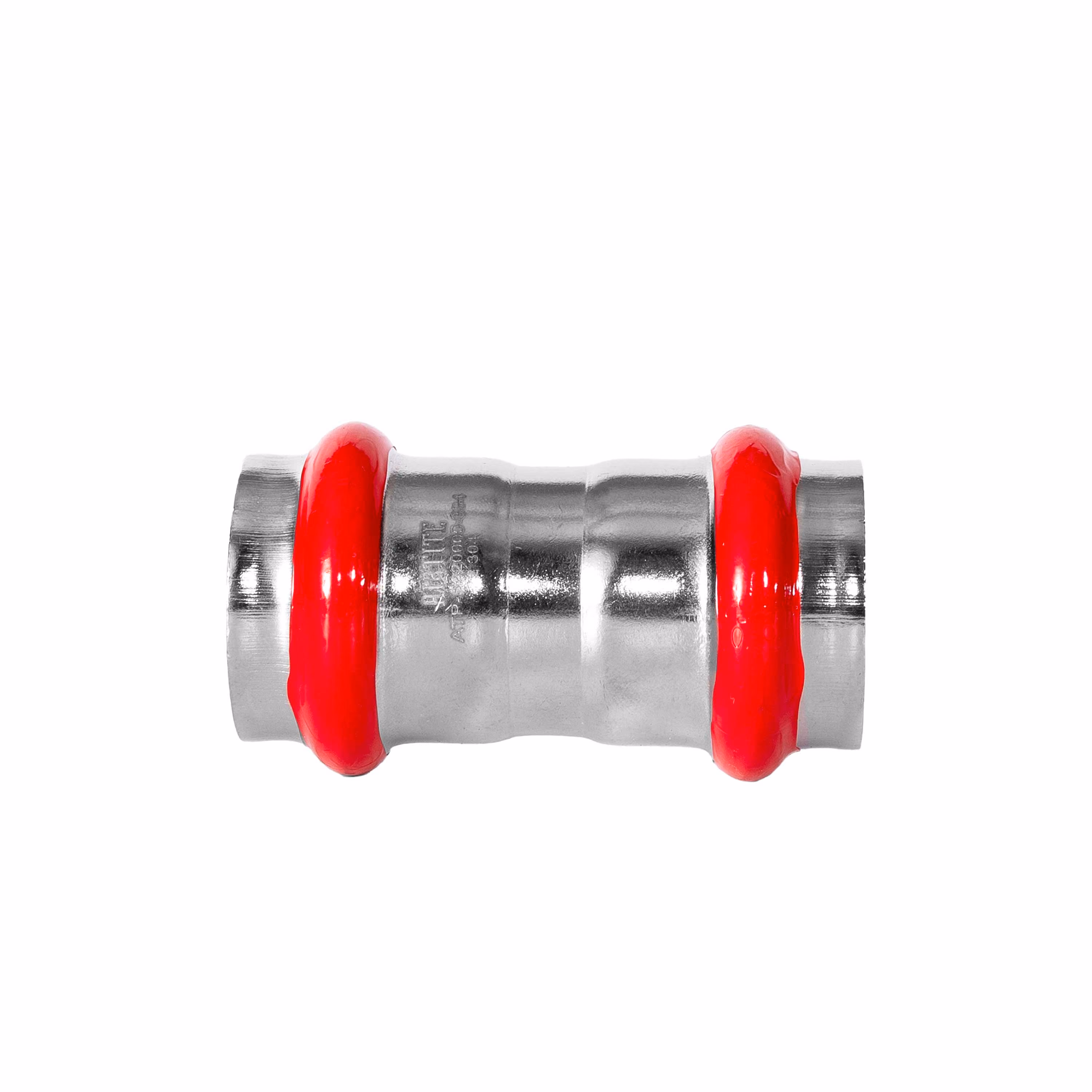

Configurations include couplings, elbows, reducers, tees, adapters, unions, caps, flanges, and valves
ASME B31.1 & ASME B31.3 certified
Maximum working pressure of 16Bar/235PSI
Working temperature range of -4°F/-20°C to 176°F/80°C
Rated for Fluid Group 2
PED/ASME rated working temperature range -4°F to 180°F
Designed to convey a variety of fluids, including compressed air, natural gas, inert gases, chilled water, hot water, process water, waste water, chemicals, acid solutions, caustic solutions, low-pressure steam (15 PSI max), and hydraulic oils

Downloads

Various stainless steel pipe fittings including elbows and tees arranged on a white background.
