Engine-Driven Reciprocating Compressors

13 HP | 37 CFM

37 CFM @ 50 PSI

34 CFM @ 90 PSI

26 CFM @ 150 PSI

No Startup Kit Required

Lifetime Parts Warranty Available

Description

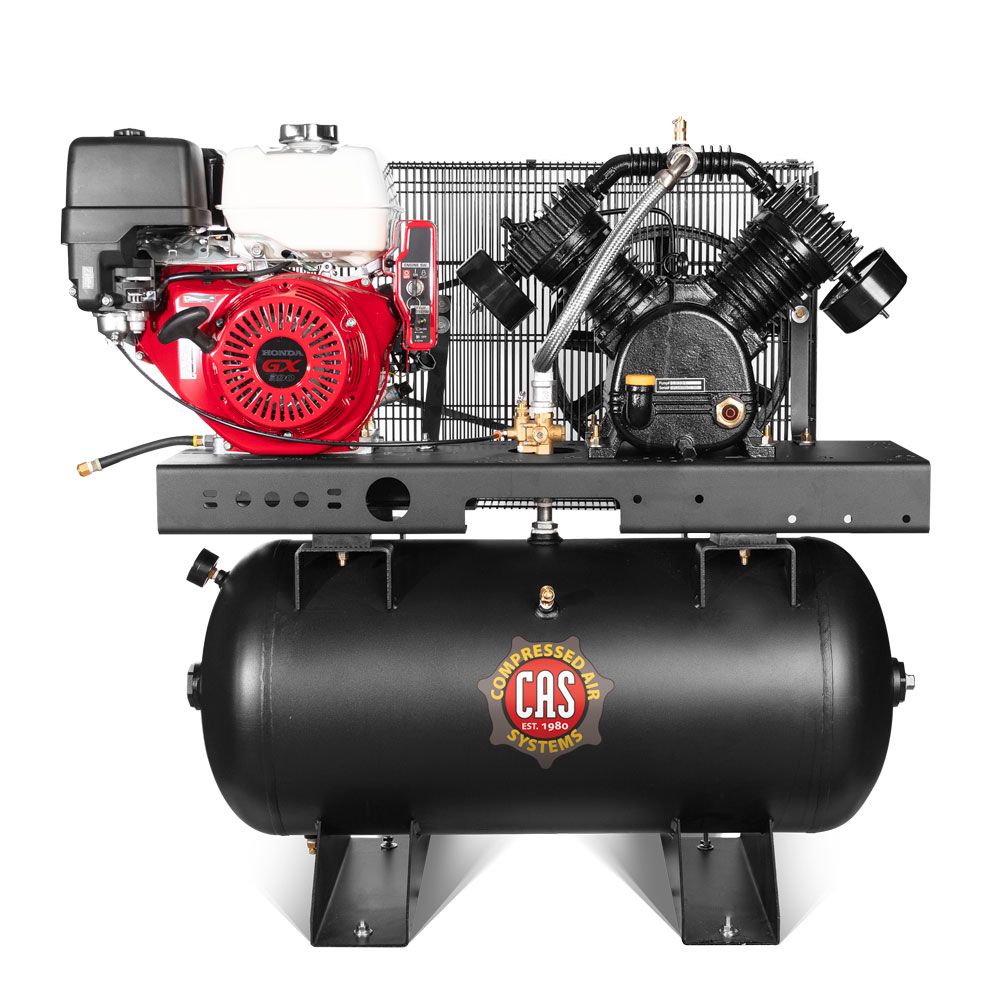

Industrial-grade air compressor powered by heavy-duty 13 HP Honda or CRX gas engine with electric start. Featuring the LH3BV 4-cylinder pump with Sweedish steel reed valves and a solid cast iron construction. Ideal for remote job sites, mobile applications, and locations without electrical power access. Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership. The Elite package adds features that make our compressors even easier to use and maintain, while delivering higher quality air.

No items found.
Features

  • Heavy-duty 4 cylinder pump for high air demand applications
  • Low RPM pump
  • Industrial-duty engine
  • Stainless Swedish steel reed valves
  • Needle bearings and inserts on rods
  • Alternator on drive engine
  • ASME/CRN certified 200 PSI air receiver
  • Bearings on both ends of the crank shaft
  • Critical controls protected by compressor base plate
  • Drive engine on left side for safety
  • Fully enclosed belt guard
  • Full saddle mounting feet
  • Heavy-duty air filter
  • Pilot valve continuous operation
  • Stainless steel flexible air line
  • 2-piece tank/top plate design
Elite Features

  • All basic features
  • Automatic tank drain
  • Belt guard mounted after cooler
  • Battery mounted and wired (no truck wiring needed)
  • Tank discharge ball valve
  • Vibration pads
  • Freight pre-paid in the 48 states & southern Canada
Models
HP
Engine Brand
Tank
LxWxH (Inches)
Weight (lbs)

C130GEH32.5

13

Honda GX390

30 Gallon Horizontal

42×22×42

375

C130GEX32.5

13

CRX

30 Gallon Horizontal

45×22×42

375
