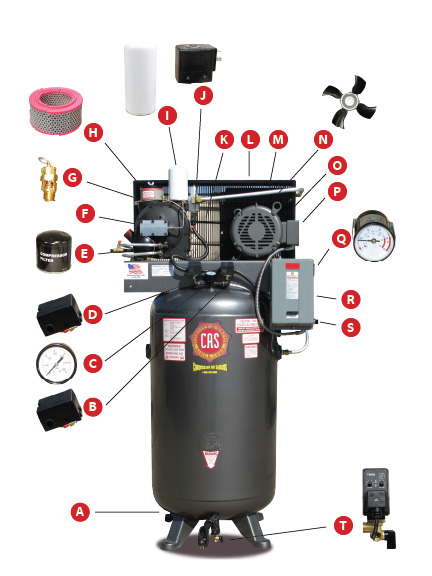

7.5 HP Rotary Screw Compressors
| Item Number | Parts Description | Part Number |
|---|---|---|
| A | 80 Gallon tank | AT-300559 (VERT) IAT-300569 (HORZ) |
| B | High pressure switch | IAT-LF10-1H3 |
| C | Pressure gauge | IAT-PSB20 |
| D | Operating pressure switch | IAT-9013FHG |
| E | Oil filter | IAT-R-9206 |
| F | Airend | IAT-NK30 |
| G | Sump safety valve | IAT-ST25-200 |
| H | Airend intake filter | IAT-R-9213 |
| I | Airend separator | IAT-R-12476 |
| J | Airend control solenoid | NK30 SOLINOID |
| K | Belt | IAT-3VX475 |
| L | Belt guard | IAT-BG5X18X32X10 |
| M | Air/Oil Cooler (Elite) Oil Cooler (Basic) |
IAT-R-14366 |
| N | Cooler Fan | IAT-026034C441 |
| O | Motor pulley | IAT-2-3V8.00 |
| P | Electric motor | IAT-M-3311T (3 PHASE) IAT-L1510T (1 PHASE) |
| Q | Compressor temperature switch/gauge | IAT-20TE2504 |
| R | Magnetic motor starter | IAT-8911DPSG23V09 (3 PHASE) IAT-8911DPSG42V09 (1 PHASE) |
| S | On/Off switch | IAT-ZB4-BD2, IAT-ZB4-B2101 |
| T | Electronic auto drain (Elite only) | IAT-ET20M21TB |
| Part numbers subject to change/update always consult factory prior to ordering. | ||
