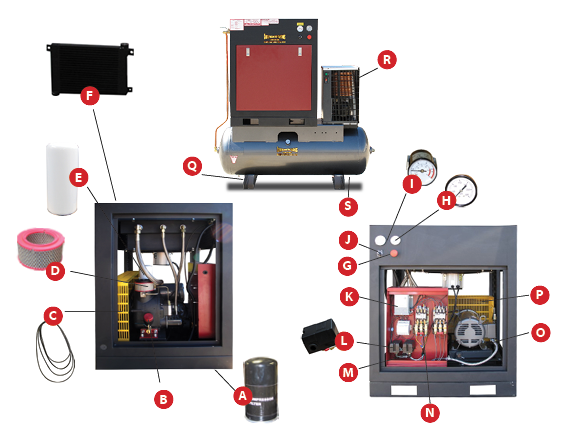

25-15hp Enclosed CRD Rotary Screw Compressor
| Item Number | Parts Description | Part Number |
|---|---|---|
| A | Airend oil filter | IAT-R-9206 |
| B | Compressor airend | IAT-NK31 |
| C | Airend drive belt | IAT-3VX375 |
| D | Airend air filter | IAT-R-9213 |
| E | Airend separator | IAT-R-12476 |
| F | Airend air/oil cooler | IAT-R-14366 (5-10 HP) IAT-R-14274 (15hp) |
| G | Emergency stop button | IAT-XB4BT42 |
| H | Pressure gauge | IAT-PSB20 |
| I | Temperature switch gauge | IAT-20TE2504 |
| J | On/Off Switch | IAT-ZB4-BD2 |
| K | SMART Contactor | IAT-FL1D-B12 |
| L | High pressure switch | LF-101H4 |
| M | Operating pressure switch | IAT-9013FHG |
| N | Main motor contactor | IAT-8911DPSG53 |
| O | Drive motor | IAT-EM-BALDOR |
| P | Drive motor pulley | AT-4.12 (5-10 HP) 5.3 (15hp) |
| Q | Automatic tank drain 110 Volt | ET2523 |
| R | Refrigerated air dryer | IAT-25 (5-7.5 HP) IAT-35 (10 HP) IAT-50 (15 HP) |
| S | 80 Gallon Horizontal ASME Tank | IAT-300569 |
| Part numbers subject to change/update always consult factory prior to ordering. | ||
