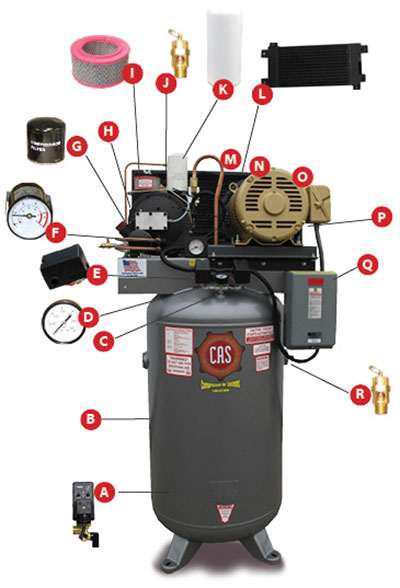

15 HP NK31 Rotary Screw Compressor Parts
| Item Number | Parts Description | Part Number |
|---|---|---|
| A | Automatic Tank Drain | IAT-ET2523 |
| B | Air Reciever | IAT-300559 |
| C | High Pressure Switch | IAT-LF10-1H3 |
| D | Pressure Gauge | IAT-PSB20 |
| E | Operating Pressure Switch | IAT-9013FHG |
| F | Temperature Gauge | IAT-ET20 |
| G | Airend Oil Filter | IAT-9206 |
| H | Airend | IAT-NK31 (See Airend Diagram) |
| I | Airend Air Filter | IAT-9213 |
| J | Airend Sump Safety Valve | IAT-ST25-200 |
| K | Airend Separator | IAT-12476 |
| L | Air/Oil Cooler | IAT-14274 |
| M | Drive Belt | IAT-3R3VX670 |
| N | Drive Motor Pulley | IAT-3-3V14 |
| O | Cooling Fan | IAT-026041C441 |
| P | Drive Motor | IAT-EM2513T |
| Q | Motor Contactor | IAT-8911DPSG53 |
| R | Tank Safety Valve | IAT-ST25-200 |
| Part numbers subject to change/update always consult factory prior to ordering. | ||
