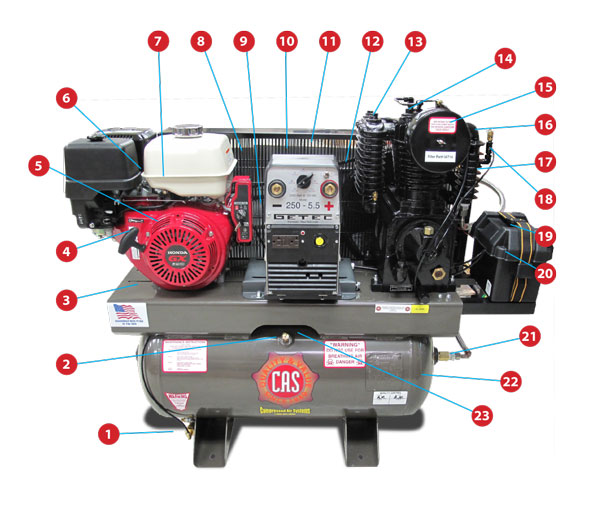

10-14 HP Compressor/Generator/Welder Parts
| Item Number | Parts Description | Part Number | ||
|---|---|---|---|---|
| 1 | Automatic Tank drain | IAT-WV1 | ||
| 2 | Pressure Gauge | IAT-PSB20 | ||
| 3 | Pilot Pressure Control Valve | RCB-MHU160/175 | ||
| 4 | Pneumatic Throttle Control | TCSP-H-113B HONDA, TCXLI-CH440 KOHLER, TCSA-KD420 DIESEL | ||
| 5 | Drive Engine | GX390 HONDA, CH440 KOHLER, KD420 DIESEL | ||
| 6 | Motor Pulley Hub | LPH1 | ||
| 7 | Motor Pulley | LP2B3.95 GAS | ||
| 8 | Belts | IAT-B84 | ||
| 9 | Generator/Welder assembly drive hub | IAT-SH24 | ||
| 10 | Generator /Welder assembly drive pulley | IAT-2B40 | ||
| 11 | Generator/ Welder assembly | IAT-E250 | ||
| 12 | Generator /Welder drive belt | IAT-B37 | ||
| 13 | Belt guard after cooler | IAT-15AL | ||
| 14 | Discharge safety valve | IAT-ST25-250 | ||
| 15 | Compressor pump air filter | IAT-14 | ||
| 16 | Compressor pump | IAT-CA1U | ||
| 17 | Belt guard | IAT-BG40X24X6 | ||
| 18 | Inner cooler safety valve | IAT-ST25-70 | ||
| 19 | Battery Box | IAT-BATBOX | ||
| 20 | Battery | IAT-BATTERY | ||
| 21 | Check Valve | IAT-CTB34X34 | ||
| 22 | Tank | IAT-300562 | ||
| 23 | Tank Safety Valve | IAT-ST25-200 | ||
| Note: Basic package units do not include parts A,M,S,T Part numbers subject to change/update always consult factory prior to ordering. |
||||
