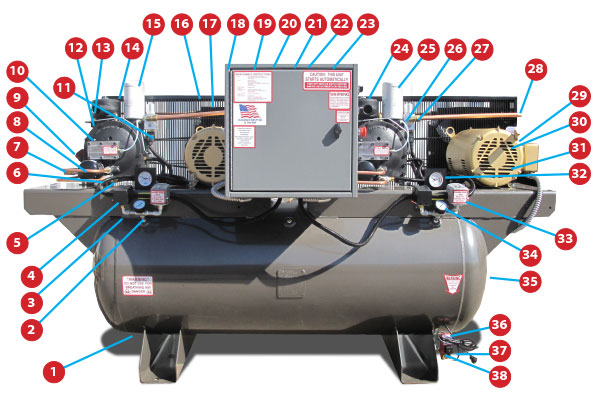

15 HP Duplex RS 120 Gallon Horizontal Parts
| Item Number | Parts Descriptions | 15 HP 3 Phase 208-230-460 |
|---|---|---|
| 1 | 120 gallon horizontal duplex tank | IAT-310079 |
| 2 | ¼ pipe T | IAT-PF1/4T |
| 3 | ¼ 90 degree street elbow | IAT-PF1/490STR |
| 4 | High pressure limit switch | IAT-LF10-1H3 |
| 5 | Secondary high oil temperature switch | IAT-20TE-2504 |
| 6 | Oil cooling line | IAT-HYD1/2X36 |
| 7 | Oil drain ball valve | IAT-716114 |
| 8 | Airend oil filter | IAT-R-9206 |
| 9 | Oil cooling line | IAT-HYD1/2X36 |
| 10 | Airend | IAT-NK31 |
| 11 | Airend control solenoid | IAT-NK31SOL |
| 12 | Airend drive pulley | IAT-2-3V5.00 |
| 13 | Airend air filter element | IAT-R-9213 |
| 14 | Airend sump safety valve | IAT-ST25-200 |
| 15 | Airend separator | IAT-R-12476 |
| 16 | Air line (airend to cooler) | IAT-HYD1/2X36 |
| 17 | Air/oil cooler | IAT-R-14366 |
| 18 | Electrical control enclosure | IAT-SCE202008LP |
| 19 | Motor starter | IAT-A30CRE45BA5E045 |
| 20 | Smart contactor | IAT-FL1E-H12RCC |
| 21 | On/off switch | IAT-M22M-WKV |
| 22 | Emergency stop button | IAT-M22M-DRP-R-K01 |
| 23 | Load/unload switch | IAT-M22M-WKV |
| 24 | Belt guard | IAT-BG5X18X32 |
| 25 | Compressor drive belt | IAT-2R3VX530 |
| 26 | High air temperature switch | IAT-20TE-2504-2 |
| 27 | Airend air discharge fitting | IAT-2501-08-08 |
| 28 | Cooling fan | IAT-026034C441 |
| 29 | Electric drive motor | IAT-EM3615T |
| 30 | Electric drive motor pulley | IAT-2-3V8.00 |
| 31 | Drive pulley mounting hub | IAT-LPH11/8 |
| 32 | Oil temperature switch/gauge | IAT-20TE-2504 |
| 33 | Operating pressure switch | IAT-9013FHG42 |
| 34 | Operating pressure gauge | IAT-PSL25 |
| 35 | Tank discharge port | IAT-PF2X3/4REDUCER |
| 36 | Electronic automatic tank drain | IAT-ET2523 |
| 37 | ¼ pipe nipple | IAT-PF1/4NIP |
| 38 | ¼ pipe 90 degree street elbow | IAT-PF1/490STR |
| Part numbers subject to change/update always consult factory prior to ordering. | ||
