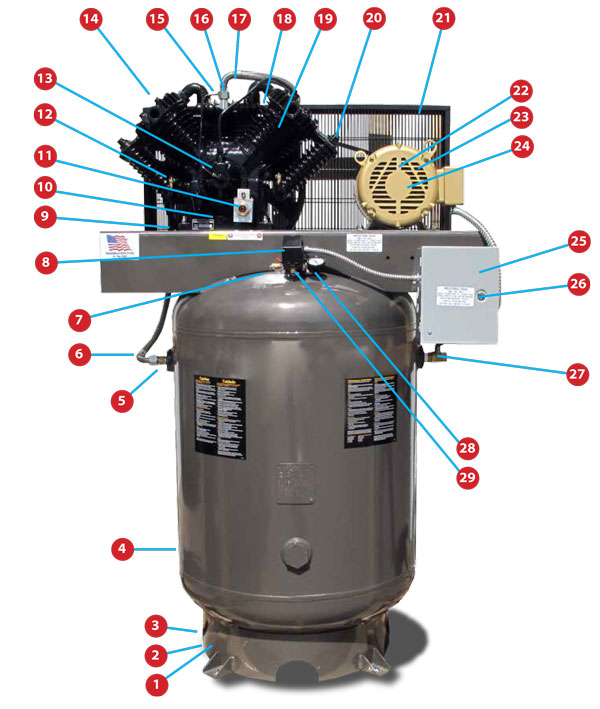

7.5 HP CA2 Elite 120 Gallon Vertical Parts
| Item Number | Parts Descriptions | 7.5 HP 1 Phase | 7.5 HP 3 Phase 230 volt | 7.5 HP 3 Phase 480 volt |
|---|---|---|---|---|
| 1 | 90 degree street elbow | IAT-PF1/490ST | IAT-PF1/490ST | IAT-PF1/490ST |
| 2 | pipe nipple | IAT-PF1/4CL | IAT-PF1/4CL | IAT-PF1/4CL |
| 3 | Pneumatic automatic tank drain | IAT-WV-1 | IAT-WV-1 | IAT-WV-1 |
| 4 | 120 gallon vertical 200psi MWP tank | IAT-301022.1 | IAT-301022.1 | IAT-301022.1 |
| 5 | Tank check valve | IAT-CTJ3434 | IAT-CTJ3434 | IAT-CTJ3434 |
| 6 | Belt guard after cooler to tank line | IAT-SS3/4X48 | IAT-SS3/4X48 | IAT-SS3/4X48 |
| 7 | 200psi safety valve | IAT-ST25-200 | IAT-ST25-200 | IAT-ST25-200 |
| 8 | Operating pressure switch | IAT-LF10-1H3 | IAT-LF10-1H3 | IAT-LF10-1H3 |
| 9 | Reciprocating pump mounting bolts | IAT-3/8X2 | IAT-3/8X2 | IAT-3/8X2 |
| 10 | Oil drain tube | IAT-PF3/8X6 | IAT-PF3/8X6 | IAT-PF3/8X6 |
| 11 | Low oil monitor | IAT-3353102-D | IAT-3353102-D | IAT-3353102-D |
| 12 | 70psi between stage safety valve | IAT-ST25-70 | IAT-ST25-70 | IAT-ST25-70 |
| 13 | Centrifugal unloader elbow | IAT-CA-070400 | IAT-CA-070400 | IAT-CA-070400 |
| 14 | Reciprocating pump air filter element | IAT-CA-712114 | IAT-CA-712114 | IAT-CA-712114 |
| 15 | 250psi pump discharge safety valve | IAT-ST25-250 | IAT-ST25-250 | IAT-ST25-250 |
| 16 | Reciprocating pump discharge fitting | IAT-2501-12-12 | IAT-2501-12-12 | IAT-2501-12-12 |
| 17 | Reciprocating pump to belt guard after cooler line | IAT-SS3/4X48 | IAT-SS3/4X48 | IAT-SS3/4X48 |
| 18 | Belt guard after cooler | IAT-M-15 | IAT-M-15 | IAT-M-15 |
| 19 | Reciprocating compressor pump | IAT-CA2 | IAT-CA2 | IAT-CA2 |
| 20 | Compressor drive belts | IAT-B80 | IAT-B80 | IAT-B80 |
| 21 | Belt guard | IAT-BG40X20X5 | IAT-BG40X20X5 | IAT-BG40X20X5 |
| 22 | Electric drive motor | IAT-L1510T | IAT-EM3710T | IAT-EM3740T |
| 23 | Electric drive motor pulley | IAT-LP2B645 | IAT-LP2B645 | IAT-LP2B645 |
| 24 | Drive pulley mounting hub | IAT-LPH13/8 | IAT-LPH13/8 | IAT-LPH13/8 |
| 25 | Motor starter enclosure | IAT-AB-1086HCGKMOD | IAT-AB-1086HCGKMOD | IAT-AB-1086HCGKMOD |
| 26 | Motor starter | IAT-A30CRE45BA5E045 | IAT-A30CRE45BA5E045 | IAT-A30CFR45CX5E045 |
| 27 | Tank discharge ball valve | IAT-716116 | IAT-716116 | IAT-716116 |
| 28 | Compressor operation gauge | IAT-PSB20 | IAT-PSB20 | IAT-PSB20 |
| 29 | pipe cross | IAT-PF1/4CROSS | IAT-PF1/4CROSS | IAT-PF1/4CROSS |
| Part numbers subject to change/update always consult factory prior to ordering. | ||||
