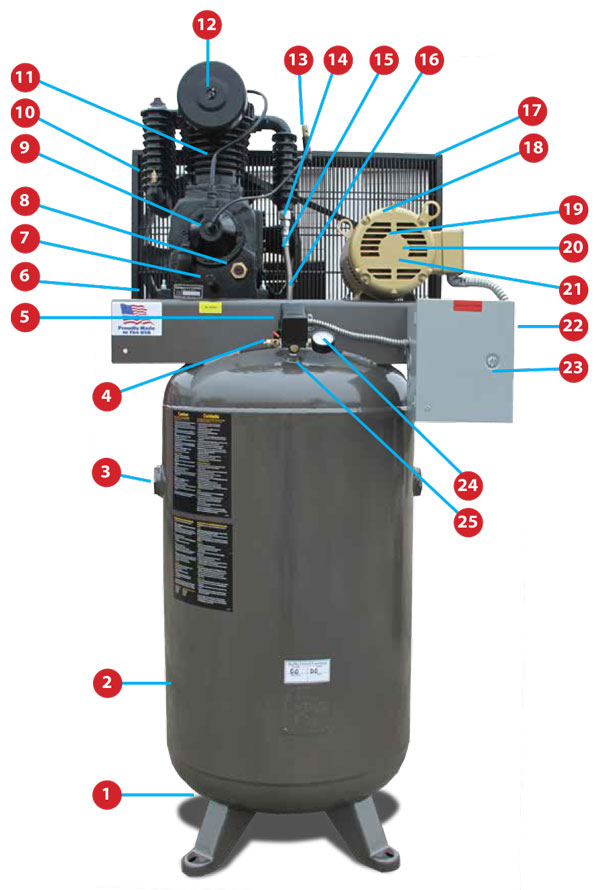

5 HP Elite 80 Gallon Vertical Parts
| Item Number | Parts Descriptions | 5 HP 1 Phase | 5 HP 3 Phase 230 volt | 5 HP 3 Phase 480 volt |
|---|---|---|---|---|
| 1 | Pneumatic automatic tank drain | IAT-WV1 | IAT-WV1 | IAT-WV1 |
| 2 | Tank discharge ball valve | IAT-716116 | IAT-716116 | IAT-716116 |
| 3 | 200psi safety valve | IAT-ST25-200 | IAT-ST25-200 | IAT-ST25-200 |
| 4 | Operation pressure switch | IAT-LF10-1H3 | IAT-LF10-1H3 | IAT-LF10-1H3 |
| 5 | Reciprocating pump mounting bolts | 3/8 X 2 | 3/8 X 2 | 3/8 X 2 |
| 6 | Low oil monitor | IAT-3353102-D | IAT-3353102-D | IAT-3353102-D |
| 7 | Oil drain tube | IAT-PF3/8X6 | IAT-PF3/8X6 | IAT-PF3/8X6 |
| 8 | Centrifugal unloader elbow | IAT-CA-070400 | IAT-CA-070400 | IAT-CA-070400 |
| 9 | 70psi between stage safety valve | IAT-ST25-70 | IAT-ST25-70 | IAT-ST25-70 |
| 10 | Reciprocating compressor pump | IAT-CA1 OR IAT-CI5 | IAT-CA1 OR IAT-CI5 | IAT-CA1 OR IAT-CI5 |
| 11 | Reciprocating pump air filter element | IAT-CA-712114 | IAT-CA-712114 | IAT-CA-712114 |
| 12 | 250psi safety valve | IAT-ST25-250 | IAT-ST25-250 | IAT-ST25-250 |
| 13 | Reciprocating pump discharge fitting | IAT-2404-08-12 | IAT-2404-08-12 | IAT-2404-08-12 |
| 14 | Reciprocating pump discharge line | IAT-SS1/2X12 | IAT-SS1/2X12 | IAT-SS1/2X12 |
| 15 | Tank check valve | IAT-CTJ1234 | IAT-CTJ1234 | IAT-CTJ1234 |
| 16 | Belt guard | IAT-BG5X20X32 | IAT-BG5X20X32 | IAT-BG5X20X32 |
| 17 | Compressor drive belt | IAT-B68 | IAT-B68 | IAT-B68 |
| 18 | Electric drive motor | IAT-L1430T | IAT-EM3615T | IAT-EM3615T |
| 19 | Electric drive motor pulley | IAT-LP2B725 | IAT-LP2B725 | IAT-LP2B725 |
| 20 | Drive pulley mounting hub | IAT-LPH11/8 | IAT-LPH11/8 | IAT-LPH11/8 |
| 21 | Motor starter enclosure | IAT-AB-1086HCGKMOD | IAT-AB-1086HCGKMOD | IAT-AB-1086HCGKMOD |
| 22 | Motor starter | IAT-A30CRE45BA5AE05 | IAT-A30CRE45BA5AE05 | IAT-A30CFR45CX5E045 |
| 23 | Compressor operation gauge | IAT-PSB20 | IAT-PSB20 | IAT-PSB20 |
| 24 | 80 gallon vertical 200psi MWP tank | IAT-300569 | IAT-300569 | IAT-300569 |
| Part numbers subject to change/update always consult factory prior to ordering. | ||||
