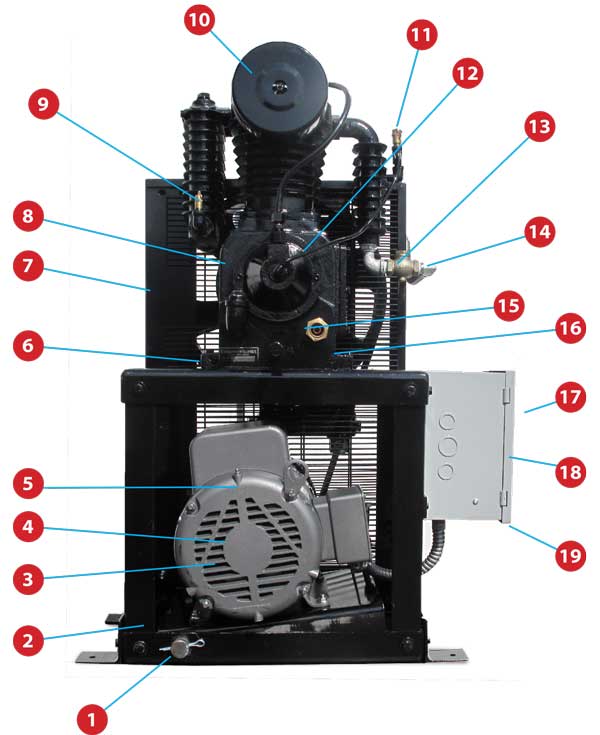

7.5 HP Cube Reciprocating Compressor Parts
| Item Number | Parts Description | 7.5 HP phase | 7.5 HP 3 phase 230V | 7.5 HP 3 phase 480V |
|---|---|---|---|---|
| 1 | Drive motor mounting plate shaft | IAT-CBMTR-SHFT | IAT-CBMTR-SHFT | IAT-CBMTR-SHFT |
| 2 | Drive motor mounting plate | IAT-CBMTR-PLT | IAT-CBMTR-PLT | IAT-CBMTR-PLT |
| 3 | Electric drive motor | IAT-L1510T | IAT-EM3710T | IAT-EM3710T |
| 4 | Drive motor pulley | IAT-LP2B925 | IAT-LP2B925 | IAT-LP2B925 |
| 5 | Drive motor pulley mounting hub | IAT-LPH 13/8 | IAT-LPH 13/8 | IAT-LPH 13/8 |
| 6 | Belt guard | IAT-BG-CUBE-V3 | IAT-BG-CUBE-V3 | IAT-BG-CUBE-V3 |
| 7 | Drive belts | IAT-B74 | IAT-B74 | IAT-B74 |
| 8 | Reciprocating compressor pump | IAT-CA1 | IAT-CA1 | IAT-CA1 |
| 9 | Inner stage safety valve | IAT-ST25-70 | IAT-ST25-70 | IAT-ST25-70 |
| 10 | Reciprocating pump air filter element | IAT-CA-712114 | IAT-CA-712114 | IAT-CA-712114 |
| 11 | Discharge safety valve | IAT-ST25-250 | IAT-ST25-250 | IAT-ST25-250 |
| 12 | Centrifugal unloader elbow | IAT-CA-070400 | IAT-CA-070400 | IAT-CA-070400 |
| 13 | Discharge check valve | IAT-CB75 | IAT-CB75 | IAT-CB75 |
| 14 | Discharge JIC fitting | IAT-2404-12-08 | IAT-2404-12-08 | IAT-2404-12-08 |
| 15 | Oil sight glass | IAT-CA-731005 | IAT-CA-731005 | IAT-CA-731005 |
| 16 | Oil drain tube | IAT-PF3/8X6 | IAT-PF3/8X6 | IAT-PF3/8X6 |
| 17 | Motor starter | IAT-A30CRE45BA5E045 | IAT-A30CRE45BA5E045 | IAT-A30CRF45CX5E045 |
| 18 | Operational pressure switch | IAT-LF10-1H3 | IAT-LF10-1H3 | IAT-LF10-1H3 |
| 19 | Starter control housing | IAT-AB1086-HGCK | IAT-AB1086-HGCK | IAT-AB1086-HGCK |
| Part numbers subject to change/update always consult factory prior to ordering. | ||||
